Concrete Pump Snap Coupling With Safety Pins 2"-8"

Ücretsiz numuneler ve kuponlar için bana ulaşın.
Naber:0086 18588475571
wechat: 0086 18588475571
Skype: sales10@aixton.com
Eğer herhangi bir endişeniz varsa, 24 saat online yardım sağlıyoruz.
xÜrün Adı | beton pompası bağlantısı | Boyut | 2"-8" |
---|---|---|---|
Türü | Geçmeli kaplin, kamalı kaplin, ayarlanabilir kaplin, montaj kaplini, Cıvata kaplin | ||
Vurgulamak | Concrete Pump snap coupling,2in snap coupling,8in snap couplings |

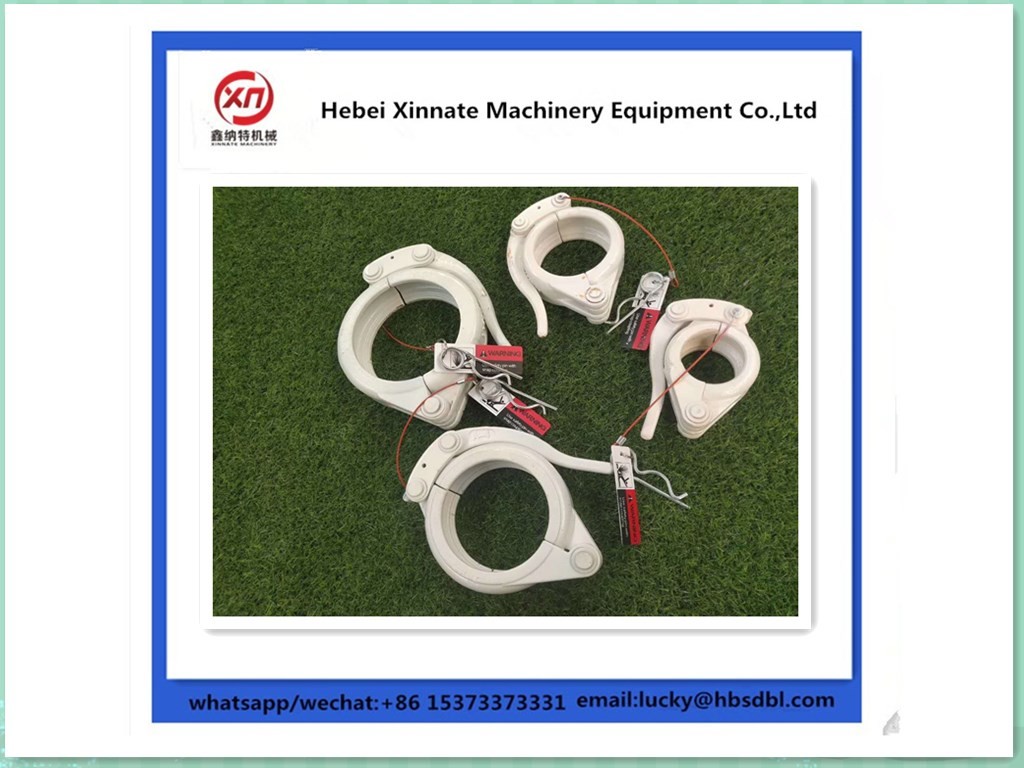

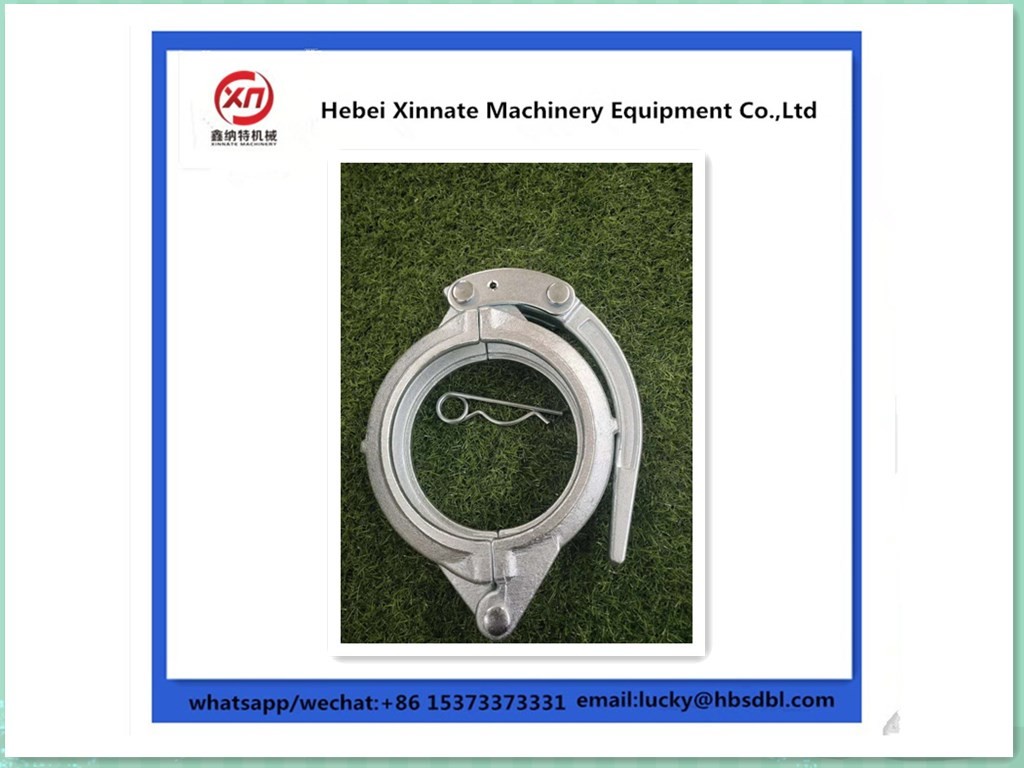

CONCRETE PUMP SNAP FORGED COUPLING
1. About concrete pump snap clamp coupling, we have forged coupling and casting coupling. Our galvanised snap coupling with safety pins , this kind of clamp coupling is usually used on Austraulian customers.In the formal situation, 2"-3' snap coupling type is usually different from 4"-8" clamp coupling, we can show you on the below piuctures :
(1).Size: 2"-8"(DN50-DN80)
(2).Type: Galvanised Quick(snap), Wedge, Adjustable, Raised lever, 1/2/4 bolt mounting, HD adjust clips.
(3).Brand: Zoomlion, Sany, Schwing, Kyokuto, Hainuo, Xugong, PM, CIFA ETC.
(4).Working pressure: Forged clamp(Galvanised coupling) is 130bar, cast clamp is 85bar .
(5).Cast pressure: Forged clamp(Galvanised coupling) is 200bar, cast clamp is 125bar.
(6).Collar:SK/FM/ZX/HD flange .
(7).Material: 40Cr, after 1050°C heating anf forging, then it is shaped.
These clamp couplings are popular in Europen and Asian Countries, quality and price is promised !
Also we have the Ameircan specialized HD adjustable clamp coupling, working pressure is 180bar, burst pressure is at least 200bar. If we thickning the clamp coupling, quality is better, working pressre is 350bar, burst pressure is 600bar, each one weight is heavier, this kind of clamp coupling is usually used in Germany Schwing .
Product name | concrete pump coupling |
Size | 2"-8" |
type | Snap coupling, wedge coupling, adjustable coupling, mounting coupling, Bolt coupling |
Techinc | Precision cast , forged |
working pressure | 130bar |
burst pressure | 200bar |
collar | SK/FM/HD flange |
color | blue, silver, yellow, red |
Brand | putzmeister, schwing, zoomline, sany, cifa, junjin and so on |
